Does diamond conduct electricity? A detailed analysis of the reasons

Does diamond conduct electricity? is a question many people have when this gemstone conducts heat extremely well but does not transmit electricity. The following article from Jemmia will help you clearly understand the reason from diamond's molecular structure, while also exploring whether there is any type of diamond that can conduct electricity.

Does diamond conduct electricity?

Diamond does not conduct electricity because diamond is an insulator with resistivity ≥ 10¹⁶ Ω·cm. The direct reason is its band gap of about 5.5 eV, which is twice that of silicon. Therefore, at room temperature, there are almost no electrons with enough energy to “jump” into the conduction band.

Diamond does not conduct electricity because diamond is an insulator with resistivity ≥ 10¹⁶ Ω·cm

Why doesn't diamond conduct electricity? Molecular structure analysis

To explain why diamond does not conduct electricity, it is necessary to clearly understand its characteristic molecular structure:

• sp³ tetrahedral structure: Each C atom forms covalent bonds with four neighboring C atoms, creating an extremely stable 3D lattice.
• No free electrons: Carbon’s four valence electrons are “locked” in σ bonds; unlike graphite (sp²), which has delocalised π-electrons that conduct electricity.
• Wide band gap: The energy required to break an electron away from the bond is ~ 5.5 eV, far exceeding thermal energy (0.026 eV at 25 °C).

Because there are no free charge carriers, pure diamond allows almost no electric current to pass through.

See more: What is the chemical formula of diamond?

Diamond has no free charge carriers, so it does not conduct electricity

Why doesn't diamond conduct electricity but conducts heat extremely well?

An interesting paradox of diamond is that although it does not conduct electricity, it conducts heat extremely efficiently. This is due to the following reasons:

• Its ultra-strong covalent bonds combined with low atomic mass allow lattice vibrations (phonons) to propagate very quickly.
• Low lattice disorder means phonons are scattered less, giving it a thermal conductivity of ~ 2 200 W/m·K - the highest in nature.
• A different mechanism: In metals, electrons carry both electricity and heat; in diamond, phonons carry almost all the heat flow, while electrons are tightly bound and therefore do not contribute to electrical conduction.

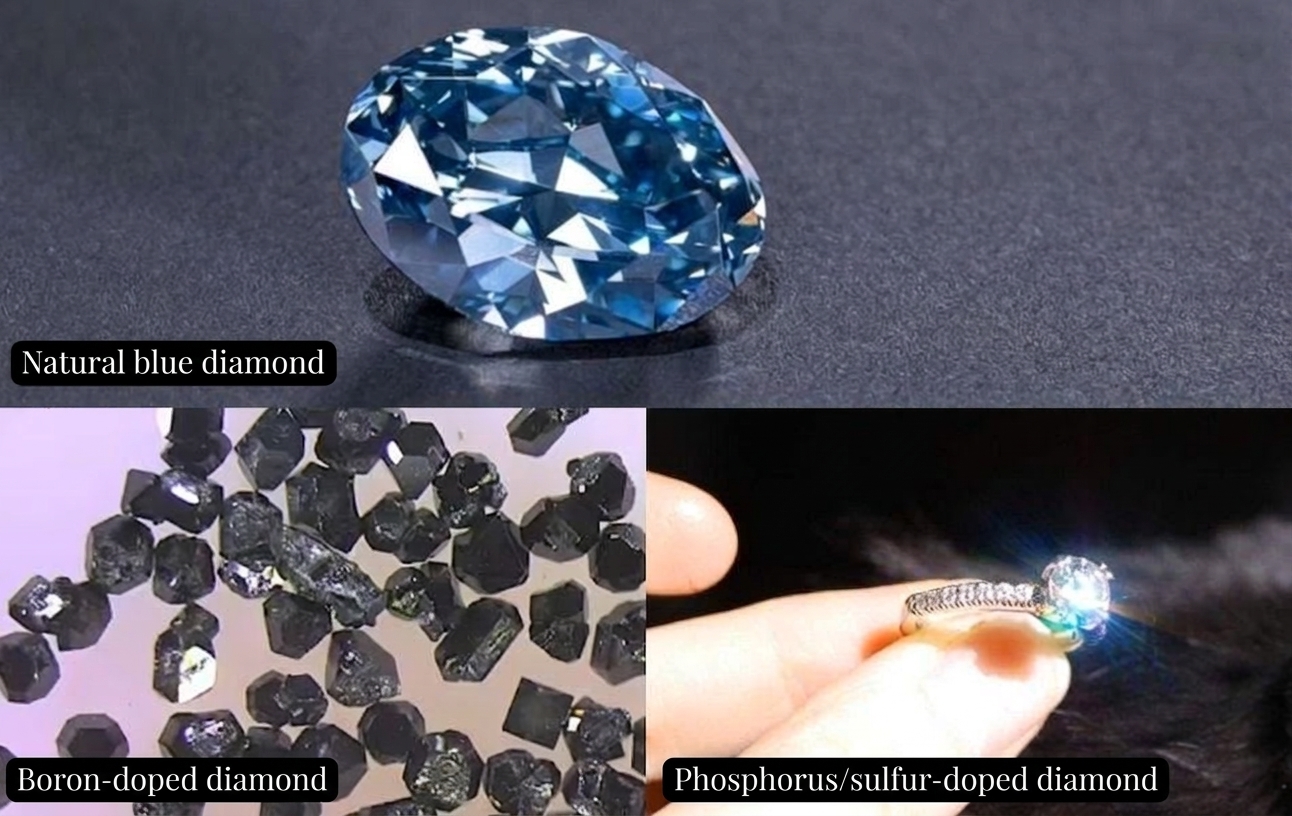

Is there any type of diamond that conducts electricity?

Although pure diamond does not conduct electricity, some special variants are capable of conducting electricity thanks to impurity components.

• Boron-doped diamond (BDD): Boron atoms (3 valence electrons) create p-type holes, turning diamond into a semiconductor; high boron concentrations can make the material superconducting below ~4 K.
• Natural blue diamonds (Example: Hope Diamond): Their blue color comes from boron impurities of a few ppm; enough to make the diamond weakly conductive at room temperature.
• Phosphorus/sulfur-doped diamonds: CVD experiments create n-type diamond (P) for high-power electronic devices; electrical conductivity is still low but is being improved.

Types of diamonds that can conduct electricity
